Key Features:
- Build-in Timelapse recording, output the video directly into msd card.
- Support SDXC and SDHC msd card.
- Provides SDK for platform provider development
- Build-in AI detection: Person detect, car detect and virtual fence

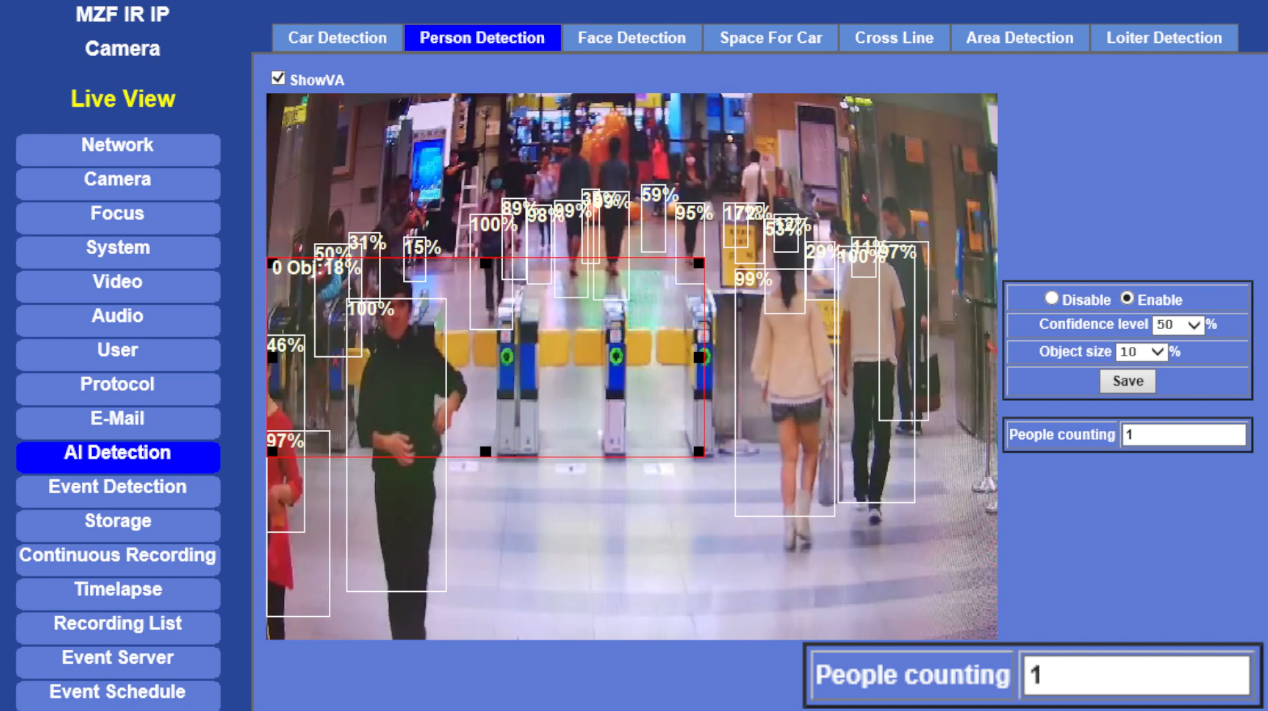

Note: Red area is people count detection area
|
Camera |
|
|
Image Device |
Sony 1/2.8” Starvis™ 2Mega-pixel image sensor |
|
Effective Pixels |
1920*1080 |
|
Lens |
5-50mm zoom & motorized lens |
|
Lens Adjustment |
Remote zoom and remote focus |
|
Min. Illumination |
Color: 0.01 lux @F1.2 (AGC on) B/W: 0.005 lux @F1.2 (AGC on) |
|
Day & Night |
Mechanical ICR Auto Manual Schedule |
|
IR LED |
High light IR LED |
|
Video |
|
|
Video Encoder |
H.264+ H.264 and MJPEG simultaneously |
|
Video Profile |
4 streams simultaneously |
|
Frame Rate |
Max. 1920*1080 @ 60fps |
|
Exposure Control |
Auto / Auto Indoor / Manual Exposure (1/5~1/10,000s) BLC On/Off WDR auto, manual |
|
Image Setting |
AE, AWB AGC 3D Noise reduction Color, brightness, sharpness, contrast, Hue Image Mirror/Flip, 90o rotation Privacy Masks |
|
On Screen Display |
Text, time and date overlay Editable OSD |
|
Timelapse Record |
Build-in |
|
Audio |
|
|
Audio Encoder |
RTSP: G.711 64kbps, G.726 32kbps |
|
Audio Streaming |
One-way or two-way |
|
Microphone |
External microphone input |
|
Audio Output |
External speaker output |
|
Network |
|
|
Supported Protocols |
IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, Samba, ICMP, SNMP, 802.1x, iSCSI |
|
Security |
Password protection, IP address filtering, HTTPS encryption, RTC (Real-Time Clock) |
|
Users |
20 simultaneous unicast users |
|
Ethernet |
10Base-T/100Base-TX auto negotiation |
|
System Integration |
|
|
Application Programming Interface |
ONVIF Profile S and updated ONVIF test tool API software integration SDK |
|
Alarm Triggers |
[ AI detection ] Person detection, car detection, cross line, forbidden area [ Stander Trigger ] Video motion detection, Camera Tampering, Audio Detection mSD card unmount, Digital input, Network Disconnect |
|
Alarm Events |
File upload via FTP or email File upload via Samba to NAS Notification via email, HTTP, and TCP External output activation Audio alerting output ICR On/Off |
|
General |
|
|
Power Supply |
DC12V PoE |
|
Connectors |
RJ-45 10Base-T/100Base-TX 12VDC 1 alarm input and 1 output Audio out External Audio input Factory default reset Micro SD card slot (support 128GB capacity) |
|
Indication LED |
Green and orange LEDs |
|
Operating Temperature |
-20°C to 55°C |
|
Operating Humidity |
10% ~ 90% (non-condensing) |
|
Certification |
CE, FCC, RoHS |
|
Construction |
IP67 , IK10 |
|
Housing |
Aluminum |
|
Viewing System |
|
|
OS |
Windows® 7, 8, 10 |
|
Browser |
IE 9.0 or later, Firefox, Chrome |
